应用
电气电子设备
办公自动化设备
单相电机驱动
变频器，伺服电机等
技术参数
| 额定电压 | 120/250VAC |
| 工作频率 | 50/60Hz |
| 额定电流 | 1A~35A |
| 耐压试验：（一分钟） | Line to Line 1450VDC |
| Line to Ground 2000VAC | |
| 气候类别 | HPF25/085/21 |

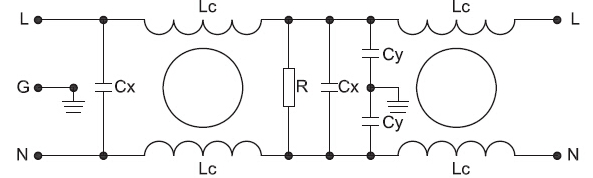

电原理图
| 型号 | 额定电流 (A) | 额定电压 (V) | 漏电流 (mA) |
| TS2200-3-01 | 3 | 120/250 | 0.5 |
| TS2200-6-01 | 6 | 120/250 | 0.5 |
| TS2200-10-01 | 10 | 120/250 | 0.5 |
| TS2200-16-01 | 16 | 120/250 | 0.5 |
| TS2200-1-03 | 1 | 120/250 | 0.5 |
| TS2200-3-03 | 3 | 120/250 | 0.5 |
| TS2200-6-03 | 6 | 120/250 | 0.5 |
| TS2200-10-06 | 10 | 120/250 | 0.5 |
| TS2200-20-06 | 20 | 120/250 | 0.5 |
| TS2200-30-06 | 30 | 120/250 | 1 |
| TS2200-35-06 | 35 | 120/250 | 1 |
| TS2210-3-01 | 3 | 120/250 | 0.5 |
| TS2210-6-01 | 6 | 120/250 | 0.5 |
| TS2210-10-01 | 10 | 120/250 | 0.5 |
| TS2210-16-01 | 16 | 120/250 | 0.5 |
| TS2210-10-06 | 10 | 120/250 | 0.5 |
