应用
电气电子设备
办公自动化设备
LED驱动器，健身器材，
单相电机驱动等
技术参数
| 额定电压 | 120/250VAC |
| 工作频率 | 50/60Hz |
| 额定电流 | 6A~100A |
| 耐压试验：（一分钟） | Line to Line1450VDC |
| Line to Ground 2000VAC | |
| 气候类别 | HPF25/085/21 |

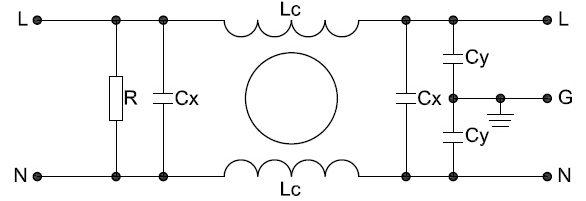

电原理图
| 型号 | 额定电流 (A) | 额定电压 (V) | 漏电流 (mA) |
| TS2100-6-01 | 6 | 120/250 | 0.5 |
| TS2100-10-01 | 10 | 120/250 | 0.5 |
| TS2100-16-01 | 16 | 120/250 | 0.5 |
| TS2100-10-06 | 10 | 120/250 | 0.5 |
| TS2100-20-06 | 20 | 120/250 | 0.5 |
| TS2100-30-06 | 30 | 120/250 | 0.5 |
| TS2100-35-06 | 35 | 120/250 | 0.5 |
| TS2100-50-06 | 50 | 120/250 | 0.5 |
| TS2100-70-06 | 70 | 120/250 | 0.5 |
| TS2100-100-06 | 100 | 120/250 | 0.5 |
| TS2101-6-01 | 6 | 120/250 | 0.5 |
| TS2101-10-01 | 10 | 120/250 | 0.5 |
| TS2101-16-01 | 16 | 120/250 | 0.5 |
| TS2102-6-01 | 6 | 120/250 | 0.5 |
| TS2102-10-01 | 10 | 120/250 | 0.5 |
| TS2102-16-01 | 16 | 120/250 | 0.5 |
| TS2102-20-01 | 20 | 120/250 | 0.5 |
